CE Certification RJ45-59B-2x2 Supplier, Manufacturers

As a core network connection component, the RJ45 Ethernet Port serves as a key interface for device data transmission. Compatible with mainstream standards such as Cat5e/Cat6, it supports Gigabit high-speed transmission and is suitable for multiple scenarios including industrial control, communication equipment, and smart homes. Offering shielded/unshielded optional configurations, it boasts strong anti-interference capabilities to ensure stable and reliable data transmission. Featuring flexible mounting methods like PCB mount, the waterproof model can withstand harsh outdoor environments, meeting diverse hardware integration needs. With its standardized interface design, it enables easy plug-and-play operation and excellent durability, widely used in routers, switches, industrial computers, and other devices. It is a cost-effective choice for network interconnection in B2B scenarios, providing efficient and stable connection guarantees for enterprise-level data transmission.

Send Inquiry

Product Description

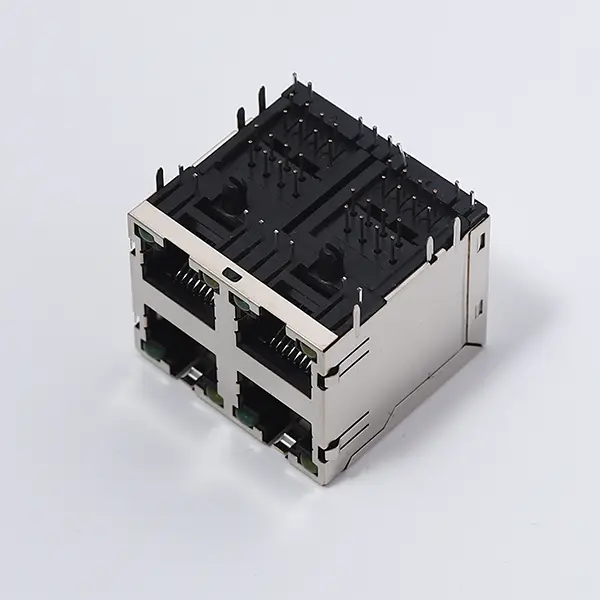

The RJ45-59B-2x2 is our highly integrated 4-port RJ45 connector developed for high-density network devices. It features a compact 2×2 layout to maximize space utilization efficiency, serving as a core connection component for miniaturized, multi-port network equipment.

Shielding & Security

The product adopts an integrally formed metal shielding shell, which offers excellent electromagnetic interference (EMI) shielding performance. It can effectively isolate electromagnetic clutter in complex scenarios such as industrial control and communication base stations, ensuring the stability and integrity of data transmission at the hardware level. The interface area is equipped with a foolproof design paired with spring-loaded latches: this prevents incorrect network cable insertion while ensuring secure locking force during plugging/unplugging, with an insertion/extraction life of ≥1000 cycles, making it suitable for high-frequency operation scenarios.

Premium Conductive Material

Internal contacts are made of gold-plated copper alloy, with a gold plating thickness of up to 30 microinches. This material combination delivers both low contact resistance and strong corrosion resistance—even with long-term use in high-humidity or dusty environments, it maintains stable conductive performance, significantly reducing the risk of poor contact. Meanwhile, the product is fully compatible with Cat5e/Cat6 wiring standards, supporting 10/100/1000BASE-T Gigabit Ethernet transmission, with a transmission delay of ≤0.2μs and a bit error rate of <10⁻¹², meeting the medium-to-high-speed network needs of enterprise-level data exchange and high-definition video transmission.

Adaptability & Installation

In terms of installation adaptability, the RJ45-59B-2x2 uses a PCB through-hole pin design. The pins are neatly arranged with sufficient soldering area, adapting to both automated SMT production line batch assembly and manual soldering debugging, effectively improving the production efficiency of equipment manufacturers. Its compact size allows 4 times the number of ports to be configured within the same PCB area compared to traditional single-port RJ45 connectors, perfectly matching the design needs of high-density integrated devices such as routers, POE switches, industrial motherboards, and edge computing gateways.

Reliability & Upgrades

Additionally, the product strictly complies with the RoHS environmental directive and has passed reliability tests including -40℃ to 85℃ high-low temperature cycling, 1000-hour salt spray, and 10G acceleration mechanical vibration. It can operate stably even under harsh working conditions. Whether for multi-port set-top boxes in the consumer electronics sector or smart terminals in the industrial field, the RJ45-59B-2x2, with its high integration, high stability, and high compatibility, helps customers achieve lightweight and high-performance upgrades for their equipment.

Frequently Asked Questions

What are the primary applications of the RJ45-59B-2x2?

It is ideal for high-density integrated network devices such as routers, POE switches, industrial motherboards, and edge computing gateways, helping to save valuable PCB space.

Does the RJ45-59B-2x2 support Gigabit Ethernet?

Yes, it is fully compatible with Cat5e/Cat6 standards and supports 10/100/1000BASE-T Gigabit Ethernet transmission.

What measures are taken to prevent electromagnetic interference (EMI)?

It features an integrally formed metal shielding shell that isolates electromagnetic clutter in complex environments like industrial control and base stations.

What is the durability and plugging life of this connector?

It is engineered for high-frequency operations, boasting an insertion and extraction life of ≥1000 cycles, and includes spring-loaded latches with a foolproof design.

What environmental and reliability certifications does it hold?

The product strictly complies with the RoHS directive and has passed -40℃ to 85℃ temperature cycling, 1000-hour salt spray, and 10G mechanical vibration tests.

What mounting configurations does it support?

It uses a through-hole pin design optimized for both automated SMT production lines and manual soldering.
