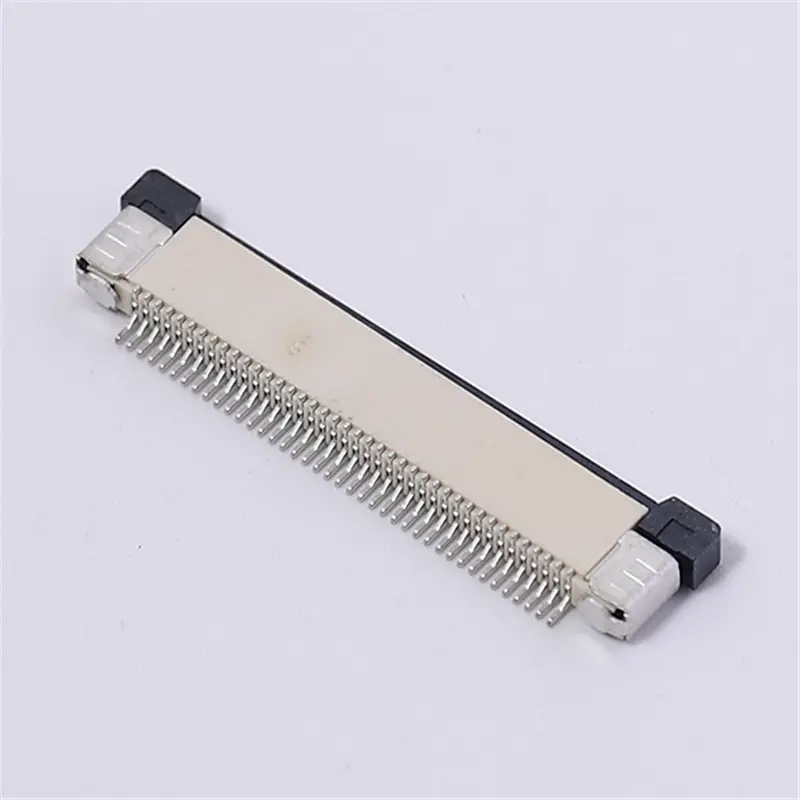

CE Certification Needle Connector 24PIN Exporters, Exporter

FPC connectors are mainly used in electronic devices such as LCD displays, scanners, etc. They are widely used in computer motherboards, LCD displays, telecommunications cards, memory, portable hard drives, including mobile devices. Recently, mobile devices such as smartphones, MP3 players, and laptops have increasingly adopted impact resistant back locking mechanisms when using FPC connectors. These connectors are used in automotive electronic connectors, in car GPS navigation, medical equipment, and are widely used in audio systems, digital devices, cameras, car audio systems, televisions, typewriters, calculators, cash registers, telephones, and more CD-ROM、VCD、DVD、 Photocopiers, printers, wireless instruments, video calling devices, and high-tech pioneers in aerospace products.

Send Inquiry

Product Description

MATERIAL & SPECIFICATIONS

Material Structure

Housing: LCP (UL94V-0), Color: Natural

Contacts: Copper Alloy

Peg: Copper Alloy

Actuator: LCP (UL94-V0), Color: Black

Ratings & Operational Limits

Operating Voltage: 50Vrms AC

Current Rating: 0.5A

Operating Temp: -55°C to +85°C

Operating Humidity: Relative Humidity 90% Max (No Condensation)

Storage Temp: -10°C to +50°C

Storage Humidity: Relative Humidity 90% Max (No Condensation)

PRODUCT DESIGN & INTEGRATION

This 40 pin pin connector is specially developed for high integration and complex circuit connection requirements. With its powerful performance and innovative design, it has become a high-quality choice in the field of electronic connections.

The product adopts a dual row design, with 40 precision circuit pins arranged in an orderly manner at a standard spacing of 1.27mm, achieving high-density connections in a compact space and providing stable support for complex signal transmission and multi-channel power supply. The vertical installation method, combined with surface mount technology (SMT), strictly controls the welding temperature at 260 ℃± 5 ℃, which not only conforms to the modern circuit board automation production process, but also ensures that the solder joints are firm and the connections are reliable, greatly improving production efficiency and product consistency.

PERFORMANCE & CRAFTSMANSHIP

In terms of performance parameters, it has a rated current of 5A and a rated voltage of 300V, which can easily meet the requirements of high-power circuits. The contact resistance is as low as 15m Ω Max, and the signal transmission loss is almost negligible; The insulation resistance is up to 1500M Ω Min, and the withstand voltage is up to 1500V AC/minute, which can effectively resist electrical interference and ensure the safe and stable operation of the circuit. The working temperature range has been expanded to -55 ℃ -+125 ℃, which can maintain excellent performance in extreme environments and meet the requirements of harsh industrial scenarios.

In terms of material and craftsmanship, the shell is made of LCP (liquid crystal polymer) material that meets the UL94V-0 flame retardant standard, which combines high temperature resistance, high strength, and low moisture absorption; The Pin pin is made of high-purity phosphor bronze material, with a surface treated with gold plating and a thickness of 3 μ m, significantly improving its anti-oxidation and anti-wear capabilities, ensuring signal integrity and connection reliability under long-term use.

APPLICATION FIELDS

This connector is widely used in high-precision fields such as server motherboards, industrial control equipment, high-speed communication modules, medical imaging equipment, etc. With high-density pin design, excellent electrical performance, and high reliability, it can perfectly adapt to scenarios such as high-speed data transmission and complex system integration, laying a solid connection foundation for stable operation and efficient collaboration of intelligent devices. It is the trusted choice for enterprises pursuing excellent quality.

Frequently Asked Questions

Q What materials are used for the main body housing of the connector?

The housing is made of LCP (Liquid Crystal Polymer) which meets the UL94V-0 flame retardant standard, combining high temperature resistance, high strength, and low moisture absorption.

Q What is the pin arrangement and spacing specification?

The product features a dual-row design containing 40 precision circuit pins arranged at a standard pitch spacing of 1.27mm, enabling high-density connections in compact spaces.

Q What are the SMT mounting requirements?

The connector is installed vertically via surface mount technology (SMT). The welding profile requires strict control of the peak temperature at 260 ℃ ± 5 ℃ to ensure firm, reliable solder joints.

Q What electrical performance metrics can this connector achieve?

It provides a rated current of 5A, a rated voltage of 300V, low contact resistance (15m Ω Max), high insulation resistance (1500M Ω Min), and withstand voltage of up to 1500V AC/minute.

Q What is the operating temperature range for extreme conditions?

The expanded working temperature range for the connector operates from -55 ℃ to +125 ℃, making it suitable for maintaining performance within demanding industrial environments.

Q How is the durability and conductivity of the pin contacts secured?

The pins are made from high-purity phosphor bronze and finished with a gold plating thickness of 3 μm, substantially improving anti-oxidation and anti-wear properties.
